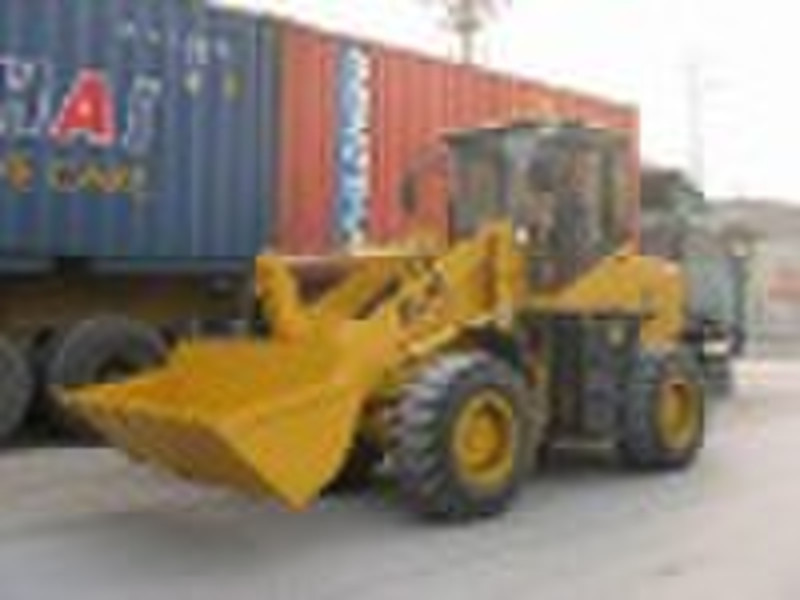

2Ton Loader with CE

Loader 2TON ZL20F WITH CE Detailed Specification Performance 1 rated loading 2000kg 2 overall weight 5800kg 3 rated bucket capacity 1.2m3 4 maximum tractive force 54KN 5 maximum breakout force 45.4KN 6 maximum grade ability 30 7 maximum dump height 3000mm 8 maximum dump reach 752mm 9 overall dimension (L×W×H) 5633×2120×2712mm 10 minimum turning radius 5251mm Engine11 model R4105G57 12 type Vertical, in-line, water cooled, 4-stroke diesel engine 13 No. of cylinder-bore/stroke 4105×125mm 14 rated power 55kw2200r/min 15 maximum torque 270N.m 16 min fuel-consume ratio ≤243g/kw.h Transmission system17 torque converter YJ280A 18 gearbox mode Countershaft power-shift 19 gear shift 2 forward shift 2 reverse shift 20 maximum speed 24km/h Drive axles21 main reducing spiral Circular Arc Bevel gear, single stage 22 decelerating mode Single stage planetary type 23 wheel base (mm) 2400mm 24 wheel tread 1640mm 25 ground clearance 310mm Hydraulic system26 system working pressure 16MPa 27 boom lifting time 4.8s±0.2s 28 total time 9.2s±0.5s 29 fuel tank capacity 80L 30 function of leveling automatically yes Brake system31 service brake air assist disc brake on 4 wheels 32 parking brake flexible shaft operated external drum Tyre33 type specification 16/7020 34 front tyre pressure 0.22Mpa 35 rear tyre pressure 0.18Mpa
